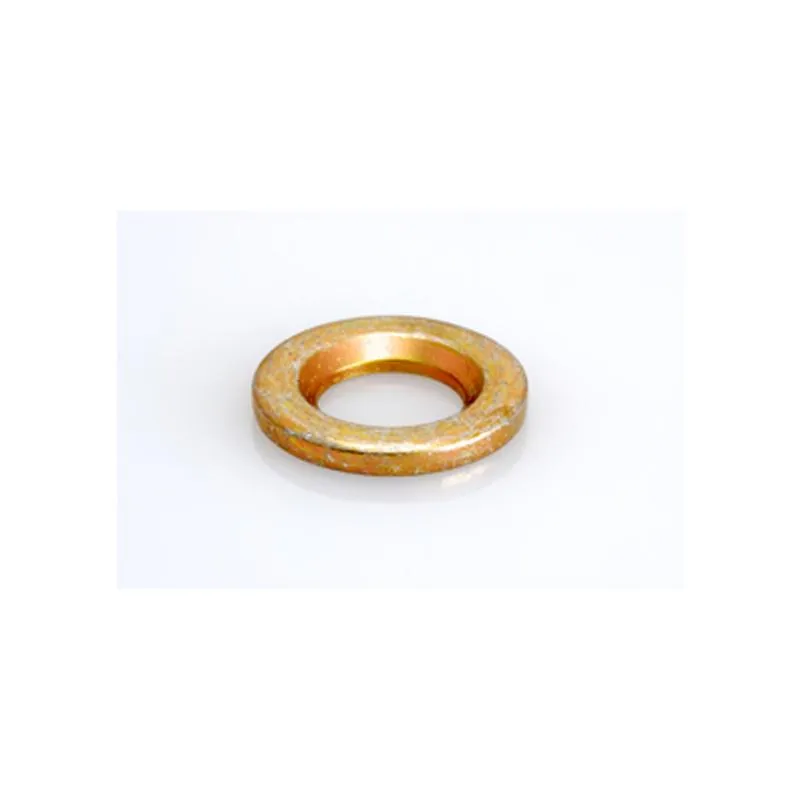

Mili Std - Steel Countersunk Washer, Flat | MS20002C6
- Hole Diameter: 0.378 Inches Minimum And 0.388 Inches Maximum
- Outside Diameter: 0.687 Inches Nominal
- Recess Diameter: 0.483 Inches Minimum And 0.495 Inches Maximum
- Material Thickness: 0.078 Inches Nominal
- Minimum Tensile Strength: 125000 Pounds Per Square Inch
- Recess Angle: 90.0 Degrees Nominal
- Material: Steel Comp 1330 Overall Or Steel Comp 4130 Overall
- Material Document And Classification: 66 Fed Std Single Material Response Overall
- Surface Treatment: Cadmium Overall
- Surface Treatment Document And Classification: Qq-P-416,Ty 2,Cl 3 Fed Spec Single Treatment Response Overall
- Style Designator: Recessed
